Open Source E-Commerce Knowledge Base

訂單Orders

簡介Introduction
訂單Orders
修改訂單Editing Orders
概覽Summary
產品Products
歷史狀態Status History
收據Invoice
套裝訂單Packing Slip

簡介Introduction

商店收到的所有訂單都會顯示在訂單系統內, 店主可以用系統管理這些訂單

All orders received for the store will be displayed in the orders section. There are a number of actions that can be carried out on an order.

訂單Orders

圖1顯示了訂單清單位於Admin>Customers>Orders section

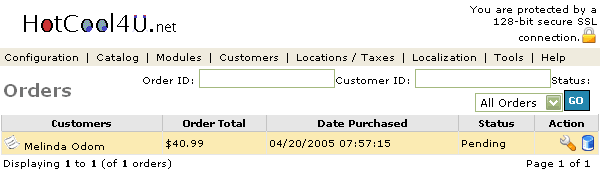

Figure 1 shows the Orders listing page under the Admin>Customers>Orders section.

Figure 1. Orders listing page under the Admin>Customers>Orders section.

To change the details click the "wrench graphic tool" under the "Action" column next to the "Title" being edited. To remove click the blue trashcan.

修改訂單Editing Orders

概覽Summary

The first screen after clicking to edit a customer is the Summary page of the customer which includes the Shipping Address, the Billing Address, the Payment Method, the Status of the order, and the Total all at a glance.

圖2顯示了概覽列表位於Admin>Customers>Orders>Edit>Summary section

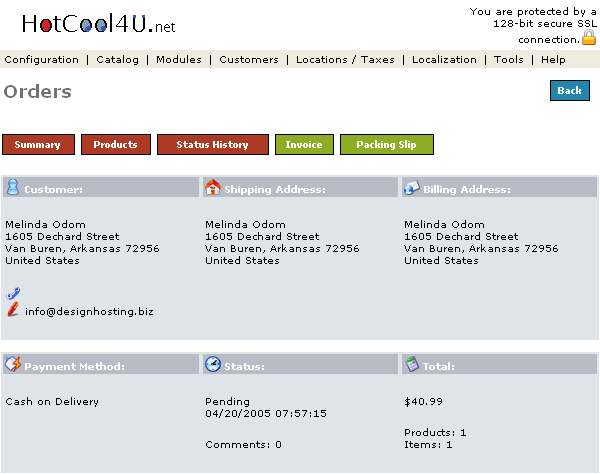

Figure 2 shows the Orders Edit Summary listing page under the Admin>Customers>Orders>Edit>Summary section.

Figure 2. Orders Edit Summary listing page under the Admin>Customers>Orders>Edit>Summary section.

產品Products

The details of the products ordered are listed.

圖3顯示了產品訂單位於Admin>Customers>Orders>Edit>Products section

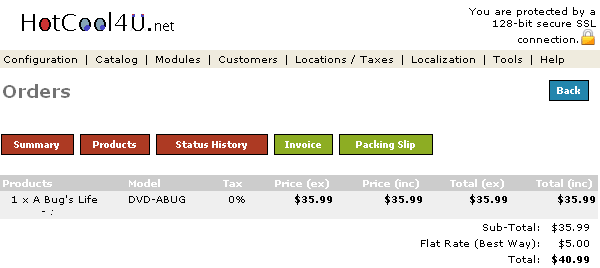

Figure 3 shows the Products Editing listing page under the Admin>Customers>Orders>Edit>Products section.

Figure 3. Products Editing listing page under the Admin>Customers>Orders>Edit>Products section.

歷史狀態Status History

In the Status History area the store owner can change the status of an order, type a new comment to the customer to read when logged into their store account, and by checking the "Notify Customer" and "Append Comments" boxes the customer is notified and a new comment is added for tracking.

圖4顯示了歷史狀態位於Admin>Customers>Orders>Edit>Status History section

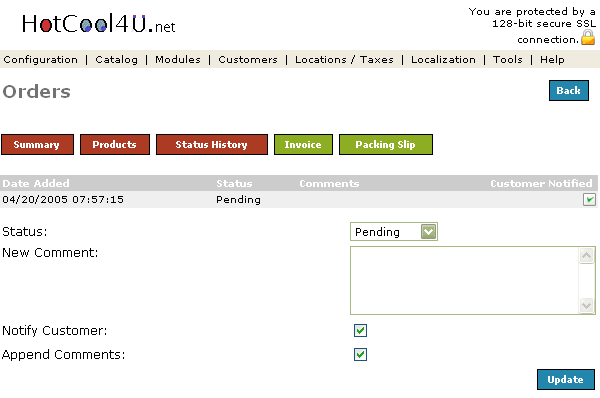

Figure 4 shows the Status History listing page under the Admin>Customers>Orders>Edit>Status History section.

Figure 4. Status History listing page under the Admin>Customers>Orders>Edit>Status History section.

收據(發貨票)Invoice

The Invoice graphic link causes a new browser window to open and gives the store owner a printable version of the invoice for the selected order with the purchased products listed and the cost.

套裝訂單Packing Slip

套裝訂單(發貨票)圖表連結開始後會有一個新的瀏覽器視窗打開並且給店主一個可列印的版本, 內容只包括產品被訂購而不是付款細節

The Packing Slip graphic link causes a new browser window to open and gives the store owner a printable version of the packing slip for the selected order which only includes the name of the products ordered and not the payment details.

NOTE:
The Invoice and Packing Slip can show the store's company image by editing the Open Source E-Commerce.gif in admin/images/Open Source E-Commerce.gif. Also, another image sized about 204x50 can be added to the admin/images folder and the graphic name changed in the admin/invoice.php and admin/packingslip.php files if desired.
